Production Capability

Manufacturing & Assembly

Up to 42-layer PCB · ±0.03mm precision · 52 million placements per month.

Max PCB Layers

Years Experience

0万

Monthly Placements (万)

0mm

Placement Precision (mm)

Manufacturing Capacity

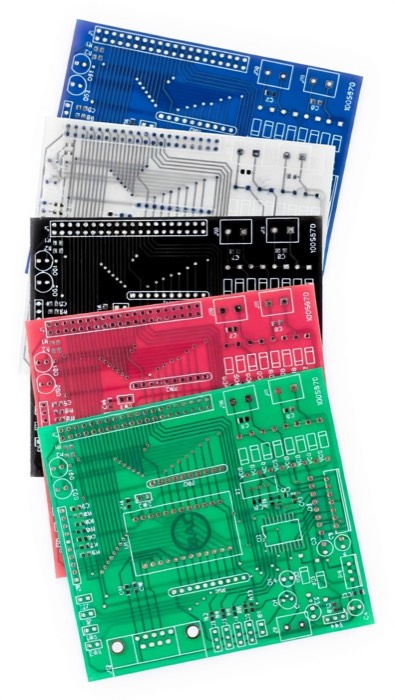

Production Capabilities

World-class PCB manufacturing capabilities to support your most demanding projects.

⬛

Layers

Up to 42

📏

Min Line Width/Spacing (Inner)

3.0/3.0 mil

📐

Min Line Width/Spacing (Outer)

4.0/4.0 mil

⚡

Copper Weight

0.5 – 6.0 OZ

📊

Max Aspect Ratio

11:1

🔧

Board Thickness

0.2mm – 8.0mm

📋

Max Panel Size

18″ × 24″

🔩

Min Hole Diameter

4 mil

🧱

Material

FR-4, High Tg FR-4, Halogen free, Rogers, Arlon, Taconic, Nelco

✨

Surface Treatment

HASL, ENIG, Immersion Silver, Immersion Tin, Lead free HASL

🎯

Impedance Control

+/-10%

SMT Production

SMT Production Capabilities

±0.03mmPlacement Precision

📏 Max PCB Size

490 × 420 mm

📐 Min PCB Size

45 × 45 mm

🔧 Board Thickness

0.4 – 5 mm

🔬 Min Components Size

0201 / 01005

📊 Component Max Height

25 mm

⚡ Min Lead Pitch

0.35 mm

🎯 Min BGA Ball Pitch

0.4 mm

✨ Placement Precision

+/- 0.03 mm

Our Equipment

Advanced Equipment

🔬

AOI Machine

Automated optical inspection for 100% surface defect detection on all assemblies

☢️

X-Ray Machine

Real-time X-ray inspection for BGA, QFN, and hidden solder joint verification

🤖

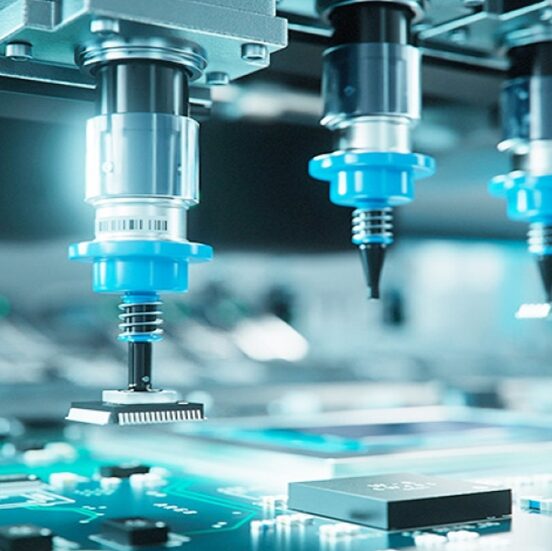

SMT Pick & Place

High-speed component placement at 0.15 seconds per chip with ±0.03mm precision

🔥

Reflow Oven

Nitrogen-atmosphere reflow soldering with 10-zone temperature profile control

🌊

Wave Solder

Lead-free wave soldering for through-hole and mixed technology assemblies

🧪

ICT Testing

In-circuit testing with custom fixtures for 100% electrical verification
